Description

BM6E Load Cell Features：

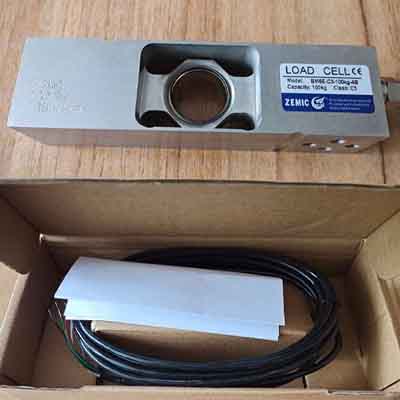

* Stainless steel IP68 single point load cell

* Suitable for single load cell structured platform scales

* High accuracy

* Maximum platform size: 600 x 600 mm

Models:

BM6E-C3-100kg-2B

BM6E-C3-150kg-2B

BM6E-C3-200kg-2B

BM6E-C3-250kg-2B

BM6E-C3-300kg-2B

BM6E Load Cell Specification:

* Accuracy class: C3

* Output sensitivity ( = FS ): 2.0 ± 0.2 mV/V

* Maximum capacity ( Emax ): 100/150/200/250/300 kg

* Maximum number of load cell intervals ( nLC ): 3000

* Ratio of minimum LC verification interval Y = Emax / vmin: 10000

* Combined error: ± 0.0230 %FS

* Minimum dead load: 0 %FS

* Safe overload: 150 %FS

* Ultimate overload: 300 %FS

* Zero balance: ± 1.5 %FS

* Excitation, recommended voltage: 5 ~ 12 (DC) V

* Excitation maximum: 18 (DC) V

* Input resistance: 350 ± 3.5 Ω

* Output resistance: 351 ± 2.0 Ω

* Insulation resistance: ≥ 5000 (50VDC) MΩ

* Compensated temperature: -10 ℃ ~+40 ℃

* Operating temperature: -35 ℃ ~ +65 ℃

* Storage temperature: -40 ℃ ~ +70 ℃

* Element material: Stainless steel

* Recommended torque on fixation: M6: 10 N.m

* Corner correction: 0.02 % load value / 100 mm

* Ingress protection (according to EN 60529): IP68

Note: “S1” output sensitivity is 2.0±0.002mV/V
