ID511 Industrial Process Weighing Controller

Home Process Control Indicator Weighing Controller ID511 Industrial Process Weighing Controller

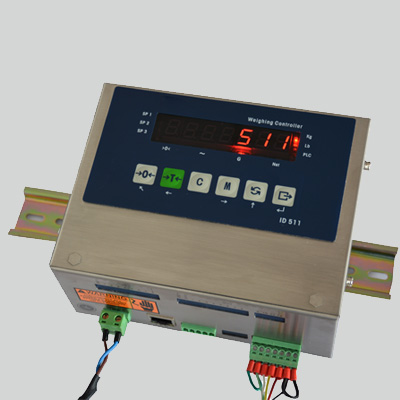

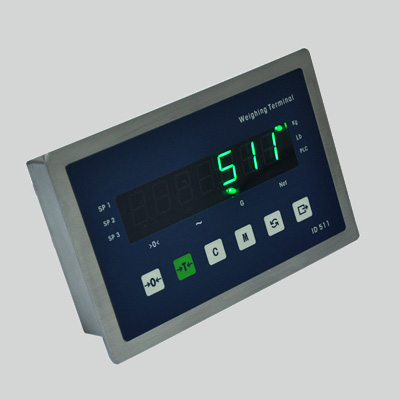

[caption id="attachment_349" align="alignnone" width="400"]ID511 weighing controller industrial weighing process controller with harsh housing[/caption] [caption id="attachment_350" align="alignnone" width="400"]ID511 industrial weighing controller industrial process weighing controller with DIN housing[/caption] [caption id="attachment_351" align="alignnone" width="400"]ID511 industrial weighing controller industrial process weighing controller for chemical weighing system[/caption]

ID511 Industrial Process Weighing Controller



Primary Applications

* Chemical and hazardous weighing purpose

* Batching control system

* Target setting control



Download: ID511 Weighing Controller

Weighing Controller Tags:

Description

ID511 is a high accuracy Industrial Process Weighing Controller. This weighing controller has a variety of field bus communication with high reliability which can fully meet complicated and harsh requirements during industrial weighing control process.



Features of ID511 Industrial Weighing Controller:

* 5-step filter, high precision,high anti-vibration

* 3 housing modes: Panel、Harsh、Exd

* Harsh and Exd versions with seven bits 1” high green and red LED display and 10 status lights.

* Panel mount with seven bits 0.56” high green and red LED display and 10 status lights.

* Standard with two serial ports (RS232 and RS232/485), Kinds of field-bus options to connect to PLC or DCS

* Report Weight and rate at the same time from PROFIBUS-DP,MODBUS_RTU,

* 4-20mA, MODBUS-TCP

* 3 kinds PROFIBUS GSD inside

* UDP,TCP,MODBUS-TCP

* No-Testing Weight Calibration is available

* Zone：Zone 2, 22 and Div. 2 location

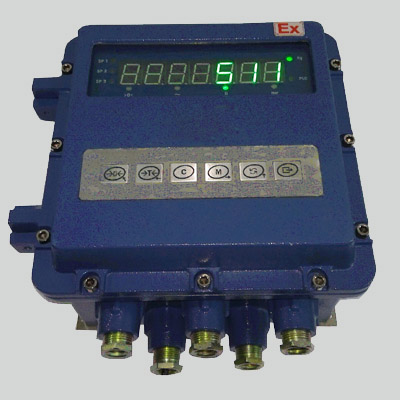

* Exd Class: EXD IIB T6

Options:

* 8 Inputs /12 Outputs (OC Type)

* 8 Inputs /12 Outputs (Relay Type)

* 4-20mA Output(16-bit DAC) x 1

* 4-20mA Output(16-bit DAC) x 2

* 100M LAN(TCP,UDP,MODBUS-TCP)

* POFIBUS DP for Siemens PLC

* PROFINET for Siemens PLC

* EtherNet/IP for Rockwall PLC

* CC-LINK for Mitsubishi PLC



Specifications of ID511 Industrial Weighing Controller
Accuracy
Accuracy Class III
EU Approval 150,000 Display Division ，CMC 6000e
Display & Keypad
Display 7 bits 7-segment green or red LED display，

Exd and Harsh：1”high display（25.4mm）

Panel： 0.56” high display（14.2mm）
Update Speed 50ms
Status Display Tare，Net，Motion，Center of Zero,Kg/Lb，PLC online/offline
Key 6 function keys（Memory，Tare, Clear，Zero，unit Switch,Print）

SS keypad for Exd version
Power On/Off None
Keypad Lock Can be locked via local input or remote communication

(MODBUS-RTU,MODBUS-TCP,PROFIBUS-DP, PROFINET, EtherNet/IP, CC-LINK)
ADC
Type 24-bit
Speed 200 Hz
Resolution 0.06uV/d
Resolution Approved 1uV/e（legal for trade）
Input 0.1mV to 19Mv
Accuracy 150,000d
Linearity and  Stability
In-linearity & TC  ≤0.0015% FS；≤5ppm/℃
Load Cell
Exciting Voltage 5V DC, max 150mA
Load Cell Number Max 10 x 350Ω or 24 x 1100Ω
Connect Type  4- wired or 6-wired , Cable:274mR/m2
Scale Basic Functionality
Calibration 2-point with testing weight or no testing(CalFree)
Filter 5-step
Scale Process Tare，Zero，Auto Zero，Motion, Auto Tare, Auto Clear,

Auto Print
Inputs Option 8 Inputs，Can be assigned  remote inputs for

remote host(PLC or DCS)
Outputs Option 12 Outputs，Can be assigned  remote outputs for

remote host(PLC or DCS)
Target Control
OVER/UNDER/OK Support and other 8 comparators are available
Zero Tolerance Support
Target Control Simple Setpoint or Sequence Control(with Start & Abort command)
Communication I/F
Serial Port 2 ports：COM1-RS232, COM2-RS232/485,

MODBUST-RTU, Continuous output weight, Demand Input & Demand Output
PROFINET Connect to Siemens PLC, report integer weight data and Floating weight data
EtherNet/IP Connect to Rockwall PLC, report integer weight data and Floating weight data
MODBUS-RTU Support, Integer & Floating weight data
100M LAN Port 100M，TCP,UDP,MODBUS-TCP
Analog Output 4-20mA(16-bit DAC) x1  or 4-20mA(16-bit DAC) x2
PROFIBUS-DP Integer & Floating weight data， 100Hz updating speed,

3 GSD inside，Totally compatible to PANTHER & IND131/331
CC-LINK for Mitsubishi PLC, Totally compatible to PANTHER & IND131/331
Housing
Panel Mount IP65，0.56” display
Harsh IP69K, 1”display
Exd IP65, 1”display，Exd ib[ia II C Ga] IIB T6 Gb/DIP A21 TA,T6
DIN Rail
Power Supply 86~264VAC
Working Condition
Temperature -10℃~40℃ ，95％ RH
Power Supply 86~264VAC，12W
