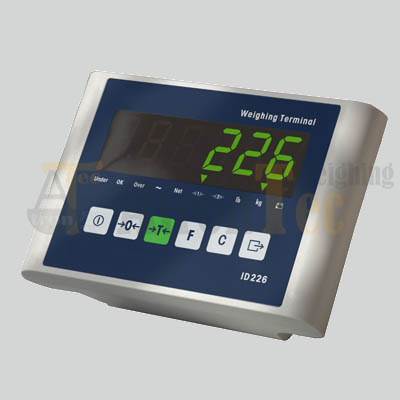

[caption id="attachment_876" align="alignnone" width="400"] Plastic weight indicator

Plastic weighing scale indicator with green LED display[/caption] [caption id="attachment_557" align="alignnone" width="400"]

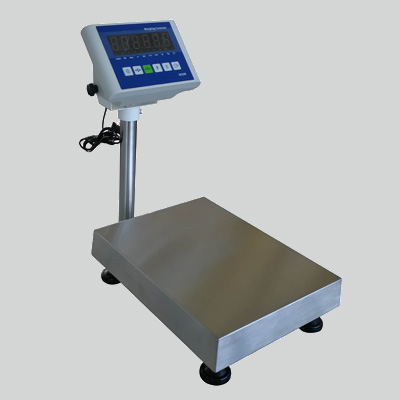

BSN226 series industrial weighing scale with steel structure platform[/caption] [caption id="attachment_877" align="alignnone" width="400"] Platform scale indicator

Green LED display weighing terminal for platform scale[/caption]

ID226P-G ABS Plastic Weighing Terminal with Green LED Display

* Accuracy: III

* 200,000 display resolution

* Load cell: max. 8*350 ohm

* 2 Serial ports: RS232 and RS485

* Display: Green LED

* Basic weighing functions: ZERO、TARE、CLEAR and PRINT

Weighing Scale Indicator Tags: Weighing Scale Indicator

Description

ID226P-G ABS Plastic Weighing Terminal with Green LED Display

Features:

* ABS plastic housing

* 200,000 display resolution

* Two display increment size range

* 6 bits 49mm high Green LED display

* Basic weighing function: ZERO、TARE、CLEAR and PRINT

* Auto Tare, Auto Clear, Auto Print, Print and Accumulation

* X10/Classifying/Counting/Animal weighing

* Over/Under/Ok relay output

* 2 standard serial ports: RS232 and RS485

* Modbus-RTU is supported

Options:

* NI-MH battery group, GP 7.2 VDC 3800mAh

* Lead-Acid cell battery, 6V4.0AH

* TCP/IP LAN port Option

* WIFI option

* Blue tooth option

Specifications:

Accuracy
Accuracy Class	III
Approval	200,000 Display resolution
Increment Size	Two display increment size range
Display & Keypad
Display	6 bits 49mm high green or red LED display & 10 status lights
Update Speed	100ms
Status Display	Over/Under/OK, Counting, KG/LB, Center of Zero, Net/Gross, Motion, Battery
Key	5 function keys(Tare,Clear,Zero,Function key,Print)
Power On/Off	Support
ADC
Type	24-bit
Speed	100 Hz
Resolution	0.05uV/d
Resolution Approved	1uV/e
Input	0.1mV to 19mV
Accuracy	200,000d
Linearity and Stability
In-linearity & TC	≤0.0015% FS；≤5ppm/℃
Exciting Voltage	5V DC
Load Cell Number	Max 8 x 350Ω
Connect Type	4- wired or 6-wired, Cable:274mR/m²
Scale Basic Functionality
Calibration	2-point , 3- point , 5-point
Filter	3-step
Scale Process	Tare,Zero,Auto Zero,Motion,Auto Tare,Auto Clear,Auto Print & Accumulation
Inputs	None
Outputs	None
Application
Basic Weighting	Tare,Zero,Print,Auto Tare,Auto Clear & Auto Print, Unit switch
Classify	Over/Under/OK alarm output with relay output
Counting	Supported
Print and Accumulation	Supported
Animal Weighing	Supported
Communication I/F
Serial Port	COM1-RS232,COM2-R485, MODBUS-RTU, continuous output weight, Print barcode weight, Print weighing records, Demand Input/Output, Mettler-Toledo SICS
TCP/WIFI	Continuous output weight, Demand input/output
Blue Tooth	Continuous output weight, Demand input/output
Housing
Plastic	ABS
Temperature	-10℃~40℃ , 95％ RH
Power Supply	110VAC ~ 220VAC, 12W
