[caption id="attachment_852" align="alignnone" width="400"]

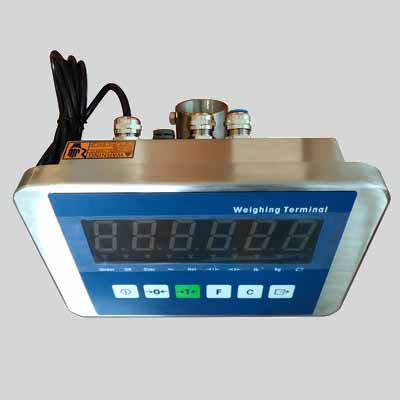

weighing indicator for platform scale[/caption]
[caption id="attachment_853" align="alignnone" width="400"]

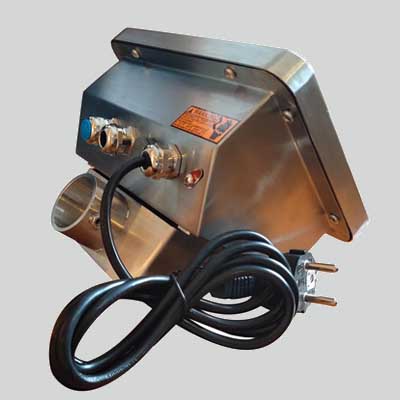

weighing indicator for platform scale[/caption]
[caption id="attachment_854" align="alignnone" width="400"]
stainless steel housing weighing indicator[/caption]
* ID226SSII-R is an industry weighing indicator for wet and harsh environment
* Stainless steel harsh enclosure with IP67 protection
* 6 bits 49mm high Red LED display and 10 status lights
Applications:
* Platform Scale, Truck Scale, Counting Scale, Over/Under/Ok Classify Scale, Animal Weighing Scale, Wireless Scale, Vehicle Scale, etc.
ID226SSII-R Stainless Steel Housing Weighing Terminal with IP67
Features:
* Stainless steel housing, IP67
* 200,000 display division
* Support 350 ohm x 8 load cell
* Two display increment size range
* RS232 and RS485 (standard)
* 49mm high display, Red LED display
* MODBUS_RTU
* Basic Functionality: ZERO、TARE、CLEAR and PRINT。
* Mettler-Toledo SICS Commands
* Auto Tare, Auto Clear and Auto Print
* Print and Accumulation
* X10/ Over/Under/OK/Count/Animal Weighing/Unit Switch。
* Auto save battery and battery indicating
* Auto Power OFF
* Power Input：100~264VAC，≤0.1A
Options:
* NI-MH battery group, GP 7.2 VDC 3800mAh
* Lead-Acid cell battery, 6V4.0AH
* TCP/IP LAN port Option
* WIFI option
* Blue tooth option
| Specifications and Parameters | |
| Accuracy | |
| Accuracy Class | III |
| Approval | 200,000 Display Division |
| Increment Size | Two display increment size range |
| Display & Keypad | |
| Display | 6 bits 49mm high Red LED display & 10 status lights |
| Update Speed | 100ms |
| Status Display | Over/Under/OK, Count, KG/LB, Center of Zero, Net/Gross, Motion, Battery |
| Key | 5 function keys(Tare,Clear,Zero,Function key,Print) |
| Power On/Off | Support |
| ADC | |
| Type | 24-bit |
| Speed | 100 Hz |
| Resolution | 0.05uV/d |
| Resolution Approved | 1uV/e |
| Input | 0.1mV to 19mV |
| Accuracy | 200,000d |
| Linearity and Stability | |
| In-linearity & TC | ≤0.0015% FS；≤5ppm/℃ |
| Exciting Voltage | 5V DC |
| Load Cell Number | Max 8 x 350Ω |
| Connect Type | 4- wired or 6-wired, Cable:274mR/m2 |
| Scale Basic Functionality | |
| Calibration | 2-point , 3- point , 5-point |
| Filter | 3-step |
| Scale Process | Tare,Zero,Auto Zero,Motion,Auto Tare,Auto Clear,Auto Print & Accumulation |
| Inputs | None |
| Outputs | None |
| Application | |
| Basic Weighting | Tare,Zero,Print,Auto Tare,Auto Clear & Auto Print, Unit switch |
| Classify | Over/Under/OK alarm output with relay output |
| Counting | Supported |
| Print and Accumulation | Supported |
| Animal Weighing | Supported |
| Communication I/F | |
| Serial Port | COM1-RS232,COM2-R485, MODBUS-RTU, continuous output weight, Print barcode weight, Print weighing records, Demand Input/Output, Mettler-Toledo SICS |
| TCP/WIFI | Continuous output weight, Demand input/output |
| Blue Tooth | Continuous output weight, Demand input/output |
| Housing | |
| Harsh | IP67, Round housing bracket or Wall housing bracket |
| Temperature | -10℃~40℃ , 95％ RH |
| Power Supply | 110VAC ~ 220VAC, 12W |
