Description

Features:

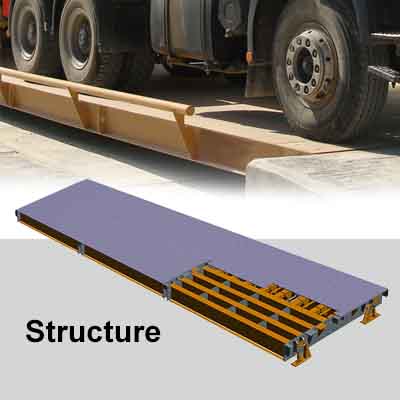

* Heavy-duty I beams;

* 10mm checked plate on top;

* 3*12m,3*16m,3*18m,3*21m,3*24m;

* Professional ball blasting process before painting;

* Sikaflex treatment for all connecting and welding positions;

* 3-layer professional Jotamastic paint,last for 10 years warranty;

* OIML approved double shear beam load cells or stainless steel compression load cells.

* Professional stainless steel K3000 weighing indicator,option of analog or digital load cells.

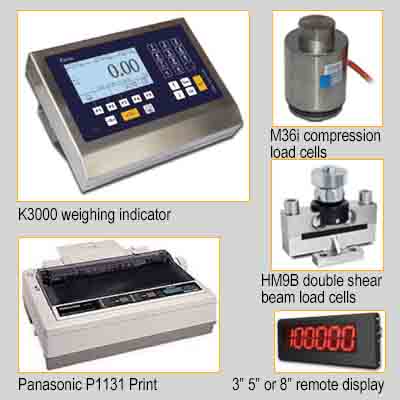

Electronics (optional)

* K3000 or K3000D weighing indicator

* M36i Compression load cells or HM9B Double shear beam load cells.

* 3″/5″/8″ remote display

* Panasonic P1131 Printer

* Users can select your own load cells and indicators also,with optional K3000D indicator,you can even use Flintec,HBM,Avery and more other digital load cells.

electronical components for truck scale

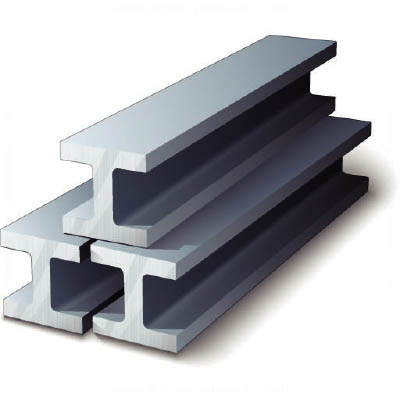

Materials

Only use heavy-duty H and I beams,for best quality of platform structure,not consideration of low cost channel beam or U beams as other weighbridges’,this selection of materials can give us the confidence to give our customers the longest warranty period of 5~10 years; Once you bought it,never worry for the next 5~10 years,just use it. We always pursue the best method to make the strongest weighbridges with the best materials and also the best processes! If you’re looking for a weighbridge for many years use,this is what it is! No worry at all!

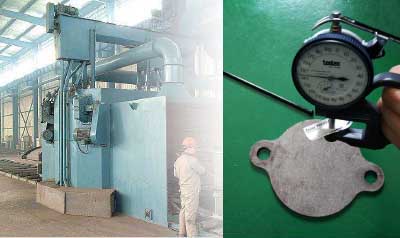

Ball Blasting

Many weighbridge factories will do the ball blasting,but all of them know the standard of roughness of this process,which will affect the adhesion of the paint,we are doing test for each platform as it’s the 1st factor how we can give our customer the 10 years warranty for our paint.

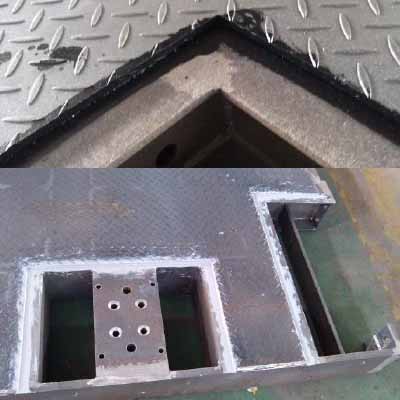

Sikaflex

Everybody is worry about the rust of the platform,but which part will get rust firstly? It will happens in every gap or connecting parts of the structure,from where water will percolate or leak,so we are sealing all those parts by Silaflex,with first process by Sika Aktivator-205(Sika Cleaner-205),it’s pretreatment agent for nonporous substrates,and then sealed it with Sikaflex 11FC,the component polyurethane sealant/adhesive. With this treatment,you don’t need to do check and repaint of the platforms every few years,it can last up to 10 years!

* All mentioned brands on copyrights belong to Sika

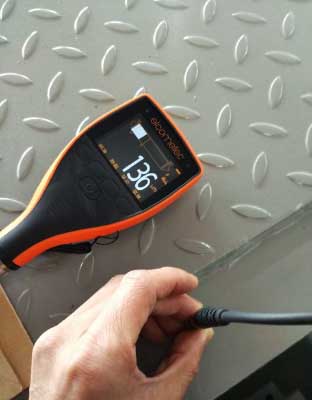

Jotamastic

The professional polyamine cured epoxy mastic coating.

It is a surface tolerant,abrasion resistance,high solids,high build product. It provides long lasting protection in evnironments with high corrosivity.

With three layers of this paint,we can promise 10 years warranty for our paint(except for those places where the truck wheels always touch and pass).

Certificates:

Low flame spread certificate(IMO FTPC Part 5)
Grain,Newcastle Occupational Health
Approved for PSPC for Crude Oil Tanks(IMO Res. MSC 288(87))
NORSOK System 1,Rev.5

* All mentioned brands and copyright belong to JOTUN.
