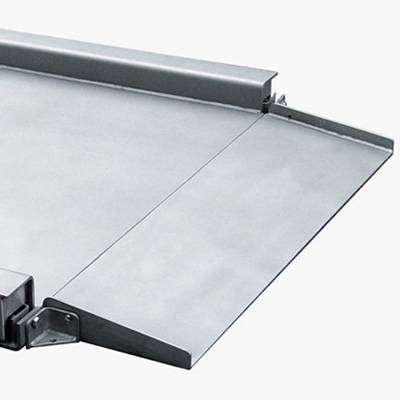

Floor Scale Stainless Steel Design Low-Profile Platform

* Accuracy class: C3

* Working temperature: platform and load cell -35°C~+65°C

* Relative humidity: less than 95%(need no condensation)

* IP: Load cell IP65

* Load cells: ZEMIC B8D

Floor Scale Platform Tags: Floor Scale Platform

Features of Floor Scale Stainless Steel Design Low-Profile Platform:

* Stainless-steel construction,sand-blasting surface,optional anti-skidding design

* Hermetically sealed stainless steel load cell

* Force transfer mechanism can be reset automatically

* The low overall height is 35mm~45mm, allows smooth driving via ramps

* Short ramp with 300mm

Specifications of Floor Scale Stainless Steel Design Low-Profile Platform:

Model	Dimensions (mm)	Weight Range
		300kg	600kg	1000kg	1500kg
PCS0808	800×800	*	*	*
PCS1010	1000×1000	*	*	*	*
PCS1212	1200×1200	*	*	*	*
PCS1515	1500×1500		*	*	*
Verification division value		0.1kg	0.2kg	0.2kg	0.5kg
Accuracy Level		C3
Working temperature		platform & load cell:-35℃~ +65℃
Relative humidity		≤95% (Need no condensation)
IP		Load cell IP67
Load cells		ZEMIC B8D
