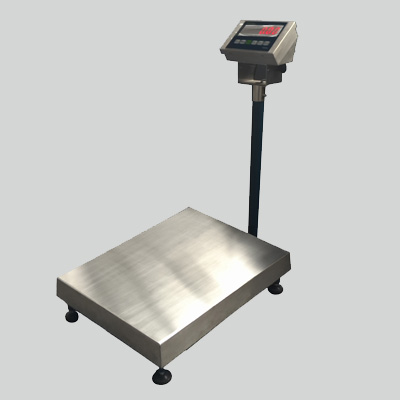

[caption id="attachment_295" align="alignnone" width="400"] stainless steel platform

bench scale platform with stainless steel design[/caption] [caption id="attachment_296" align="alignnone" width="400"] stainless steel scale

stainless steel bench scale[/caption]

Bench Scale Stainless Steel Square Tube Platform

* Accuracy class: C3

* Working temperature: -20°C~+50°C

* Relative humidity: less than 95%(need no condensation)

* Protection class: IP67,IP68,IP69k

* Load cells: ZEMIC

Download: RHS Series-Square Stainless Steel Structural Plarform

Description

Bench Scale Platform

* RH/RHS Series Bench Scale is the combination of modules-the bench scale platform and indicator. Flexible combination of modules can perform different weighing tasks in dry and wet environments.

* In dry environment, RH Series is a good choice no matter for general occasion or high-strength shock situation. In view of tough industrial environment we can choose RHS Series full stainless steel structure with hermetical sealed load cell, which is particularly suitable for water washing and corrosion occasions. They have already been used industrial,commercial,agricultural and many other occasions extensively.

Features of Square Tube Stainless-steel platform for wet environment:

* Sand-blasted stainless-steel construction and brushed stainless-steel load plate(1.4301/AISI 304).

* Hermetically sealed stainless-steel load cell could provide long lasting water proof function.

* Rugged and durable construction makes the platform suitable in heavy duty application.

* Comprehensive product line with variety weight ranges and platform sizes.

* Multi-functions of load platform combined versatile accessories can meet your exact requirements.

Specifications of Square Tube Stainless Steel Platform for wet environment:

Model	Dimensions(mm)	Loadcell	Weight Range
Model	Dimensions(mm)	Loadcell	6kg	15kg	30kg	60kg	150kg	300kg	600kg
RHS2430	240*300	B6N	*	*
RHS3040	300*400	BM6E			*	*	*
RHS4050	400*500	BM6E				*	*
RHS4660	460*600	BM6G				*	*	*
RHS6080S	600*800	BM6G				*	*	*	*
RHS6080H	600*800	B6F					*	*	*
RHS3030	300*300	B6N	*	*	*	*
RHS4040	400*400	BM6E			*	*	*
RHS5050	500*500	BM6E				*	*
RHS6060	600*600	BM6G				*	*	*
RHS8080S	800*800	BM6G				*	*	*	*
RHS8080H	800*800	B6F					*	*	*
Verification Division Value			2g	5g	10g	20g	50g	100g	200g
Accuracy Level			C3
Working Temperature			-20℃~+50℃
Relative Humidity			≤95%(need no condensation)
IP Rating			Load cell IP67,IP68,IP69K
Load Cell			ZEMIC

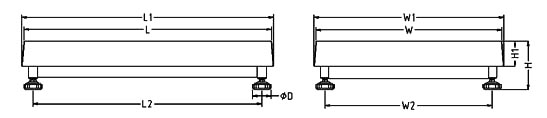

Model	L	W	H	L1	L2	W1	W2	H1	ФD
RHS2430	300	240	132	310	240	250	180	60	54
RHS3040	400	300	135	410	340	310	240	65	54
RHS4050	500	400	135	510	440	410	340	60	54
RHS4660	600	460	140	610	540	470	400	68	65
RHS6080S	800	600	155	815	740	615	540	94	54
RHS6080H	800	600	185	815	740	615	540	94	54
RHS3030	300	300	132	310	240	310	240	60	54
RHS4040	400	400	135	410	340	410	340	65	54
RHS5050	500	500	135	510	440	510	440	68	54
RHS6060	600	600	160	610	540	610	540	75	54
RHS8080S	800	800	175	820	740	820	740	97	54
RHS8080H	800	800	170	820	740	820	740	97	54
