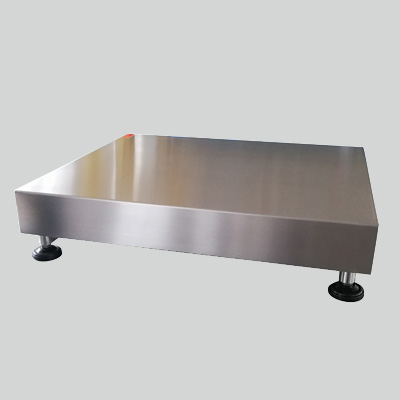

[caption id="attachment_302" align="alignnone" width="400"] carbon steel structure design

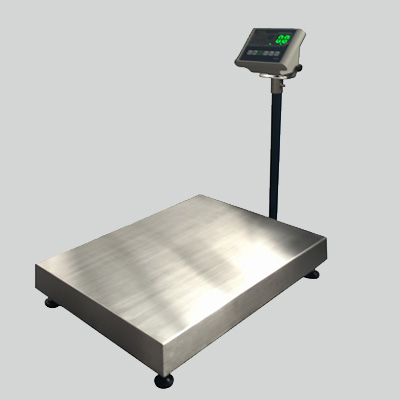

steel structure platform[/caption] [caption id="attachment_303" align="alignnone" width="400"] steel structure bench scale

bench scale with steel structure design[/caption]

Bench Scale Square Tube Carbon Steel Platform

* Accuracy class: C3

* Working temperature: -20°C~+50°C

* Relative humidity: less than 95%(need no condensation)

* IP Rating: Load Cell IP65

* Load cells: ZEMIC

Download: RH Series Square Carbon Steel Structural Platform

Bench Scale Platform Tags: Bench Scale Platform

Description

Bench Scale Platform

* RH/RHS Series Bench Scale is the combination of modules-the bench scale platform and indicator. FLexible combination of modules can perform different weighing tasks in dry and wet environments.

* In dry environment, RH Series is a good choice no matter of general occasion or high-strength shock situation. In view of tough industrial environment we can choose RHS Series-full stainless steel structure with hermetical sealed load cell, which is particularly suitable for water washing and corrosion occasions. They have already been used in industrial,commercial,agricultural and many other occasions extensively.

Features of Square Tube Carbon-Steel Platform for dry environment:

* Powder-coated welded tubular steel construction and brushed stainless steel load plate(1.4301/AISI304).

* Hermetically sealed aluminum load cell could provide an ingress protection of IP65.

* Rugged and durable construction makes the platform suitable in heavy duty application.

* Comprehensive product line with variety weight ranges and platform sizes.

* Multi-functions of load platform combined versatile accessories can meet your exact requirement.

Specifications of Square Tube Carbon-Steel Platform for dry environment:

Model	Dimensions(mm)	Loadcell	Weight Range
Model	Dimensions(mm)	Loadcell	6kg	15kg	30kg	60kg	150kg	300kg	600kg
RH2430	240*300	L6N	*	*
RH3040	300*400	L6E			*	*	*
RH4050	400*500	L6E3				*	*
RH4660	460*600	L6G				*	*	*
RH6080S	600*800	L6W				*	*	*	*
RH6080H	600*800	L6F					*	*	*
RH3030	300*300	L6N	*	*	*	*
RH4040	400*400	L6E			*	*	*
RH5050	500*500	L6E				*	*
RH6060	600*600	L6G				*	*	*
RH8080S	800*800	L6W				*	*	*	*
RH8080H	800*800	L6F					*	*	*
Verification Division Value			2g	5g	10g	20g	50g	100g	200g
Accuracy Level			C3
Working Temperature			-20℃~+50℃
Relative Humidity			≤95%(need no condensation)
IP Rating			Load cell IP65
Load Cell			ZEMIC

Model	L	W	H	L1	L2	W1	W2	H1	ФD
RH2430	300	240	132	310	240	250	180	60	54
RH3040	400	300	135	410	340	310	240	65	54
RH4050	500	400	135	510	440	410	340	60	54
RH4660	600	460	140	610	540	470	400	68	65
RH6080S	800	600	155	815	740	615	540	94	54
RH6080H	800	600	185	815	740	615	540	94	54
RH3030	300	300	132	310	240	310	240	60	54
RH4040	400	400	135	410	340	410	340	65	54
RH5050	500	500	135	510	440	510	440	68	54
RH6060	600	600	160	610	540	610	540	75	54
RH8080S	800	800	175	820	740	820	740	97	54
RH8080H	800	800	170	820	740	820	740	97	54
