Bench Scale Round Tube Stainless Steel Patform

Home Weighing Scale Bench Scale Platform Bench Scale Round Tube Stainless Steel Patform
[caption id="attachment_295" align="alignnone" width="400"] bench scale platform with stainless steel design[/caption] [caption id="attachment_307" align="alignnone" width="400"]bench scale bench scale[/caption]

Bench Scale Round Tube Stainless Steel Patform

＊Accuracy class: C3

＊Working temperature: -20°C~+50°C

＊Relative humidity: less than 95%(need no condensation)

＊Protection class: IP67,IP68,IP69k

＊Load cells: ZEMIC



Download: RNS Series-Square Stainless Steel Structural Platform

Bench Scale Platform, Featured Products Tags:

Description

Bench Scale Platform

* Bench Scale is the combination of modules–the bench scale platform and indicator. Flexible combination of modules can perform different weighing tasks in dry and wet environments.

* In dry environment, RN Series is a good choice no matter for general occassion or high-strengh shock situation. In view of tough industrial environment we can choose RNS Series–full stainless steel structure with hermetical sealed load cell,which is particularly suitable for water washing and corrosion occasions. They have alreadly been used in industrial,commercial,agricultural and many other occasions extensively.



Features of Round Tube Stainless-Steel Platform for wet environment:

* Sand-blasted welded stainless-steel construction and brushed stainless steel load plate(1.4301/AISI304).

* Hermetically sealed stainless-steel load cell could provide long lasting water proof function.

* Rugged and durable construction makes the platform suitable in heavy duty application.

* Comprehensive product line with variety weight ranges and platform sizes.

* Multi-functions of load platform combined versatile accessories can meet your exact requirement.



Specifications of Round Tube Stainless-Steel Platform for wet environment:

Model Dimensions(mm) Loadcell Weight Range
6kg 15kg 30kg 60kg 150kg 300kg 600kg
RNS2430 240*300 B6N * *
RNS3040 300*400 BM6E * * *
RNS4050 400*500 BM6E * *
RNS4660 460*600 BM6G * * *
RNS6080S 600*800 BM6G * * * *
RNS6080H 600*800 B6F * * *
RNS3030 300*300 B6N * * * *
RNS4040 400*400 BM6E * * *
RNS5050 500*500 BM6E * *
RNS6060 600*600 BM6G * * *
RNS8080S 800*800 BM6W * * * *
RNS8080H 800*800 B6F * * *
  Verification Division Value 2g 5g 10g 20g 50g 100g 200g
  Accuracy Level   C3
  Working Temperature   -20℃~+50℃
  Relative Humidity   ≤95%(need no condensation)
  IP Rating   Load cell IP67,IP68,IP69K
  Load Cell   ZEMIC

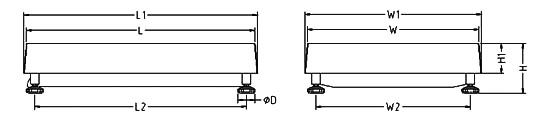

size of bench scale platform

Model L W H L1 L2 W1 W2 H1 ФD
RNS2430 300 240 112 310 240 250 180 65 54
RNS3040 400 300 112 410 340 310 240 65 54
RNS4050 500 400 112 510 440 410 340 60 54
RNS4660 600 460 140 610 540 470 400 68 65
RNS6080S 800 600 155 815 740 615 540 94 54
RNS6080H 800 600 175 820 740 620 540 94 54
RNS3030 300 300 112 310 240 310 240 65 54
RNS4040 400 400 112 410 340 410 340 65 54
RNS5050 500 500 112 510 440 510 440 68 54
RNS6060 600 600 140 610 540 610 540 75 54
RNS8080S 800 800 155 815 740 815 740 97 54
RNS8080H 800 800 175 820 740 820 740 97 54

Accessories of Round Tube Stainless-Steel Platform for wet environment:

scale stand for bench scales   Scale stand

* Stainless steel: for fastening the terminal

on the weighing platform
roller top for floor scales   Roller top

* Stainless steel: for wet environment

* Hot galvanized: for dry environment
bench scale accessories   Ball top

* Stainless steel: for wet environment

* Hot galvanized: for dry environment
